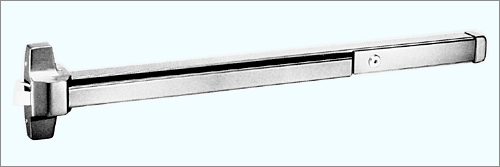

Model 3510S Series Rim Exit Device
Application :
Door control hardware For use on single door or double doors
with mullion or without mullion.
Fire exit hardware Fits for 1 3/4"(44 mm) thick standard RHR
or LHR hollow metal doors & wood doors,
other than standard 1 3/4" is available but
specify door thickness when ordered.
Fire latch bolt Minimum Stile Width : 3 7/8"(98 mm).

Minimum Stile Width Requirement :
Exit device manufacturer
Specifications :
Device Head Cover ---- Nonferrous alloy.
Chassis ---- Steel, plated.
Mechanism Housing ----
Steel, stainless steel.
Push Bar ---- Steel, stainless steel.
End Cap ---- Steel, stainless steel.
Latch Bolt ---- Stainless steel,
11/16"(17mm) throw.
Deadlocking Latch ---- Stainless steel,
5/8"(16 mm) throw.
Strike ---- Included.
Hand ---- Nonhanded
Mounting ---- Packed with standard ma-
chine screws. Not furnished sex bolts.
Order " SNB " for wood or unreinforced
metal doors.
Dogging ---- Allen-type key furnished.
Finish ---- 605, 606, 626, 630, 689, 690.
Outside Trims ---- To order separately.
UL Listed ---- For Panic Exit Hardware.
(Original listed model no.: 500SA)
