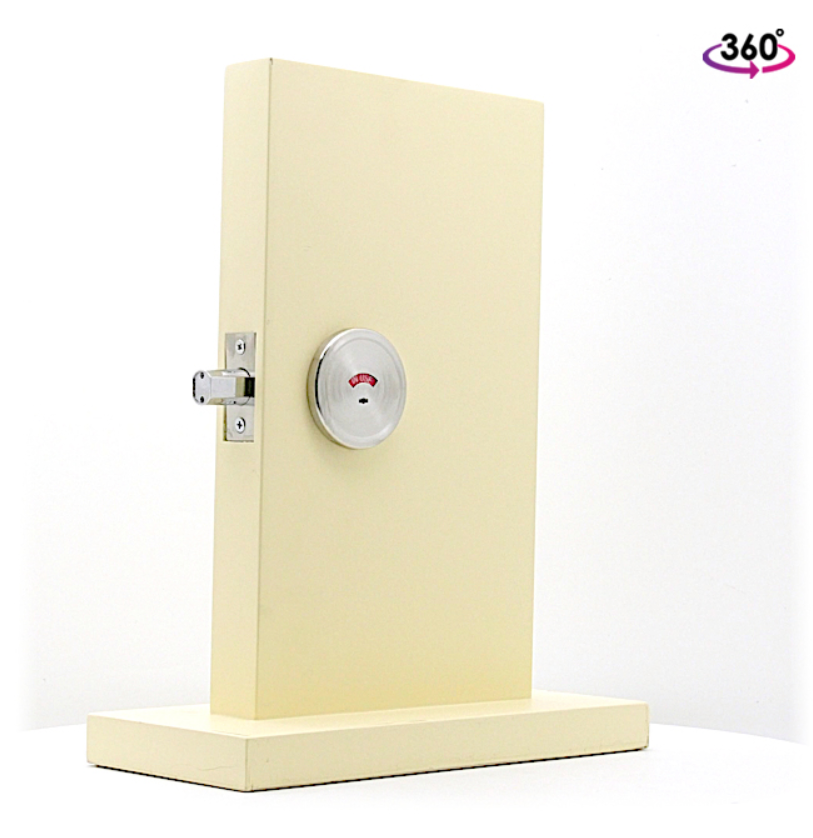

Occupancy Indicator Deadbolt

Model No. TD-100



Application

For restroom doors in the residential and commercial buildings such as apartments, airports, educational or governmental facilities.



Description

  • A commercial restroom indicator deadbolt
  • Either “IN USE or “VACANT” with color coding is outside.
  • Bolt automatically deadlocks when fully throw.

Features

  • Thumbturn is large and easy to use.
  • Non-handed. It may be used on right hand or left hand doors swinging in or out.
  • Tapered front housing that can not be unscrewed.
  • Anti-Microbial coating is available on request.
  • Emergency key is supplied on request.
  • Adjustable backset



Door thickness    1-3/4" ~ 2" (44.5mm~51mm)
Latch Bolt Projected Length    1" (25.5mm)
Latch Type    Square corner
Latch material    Stainless steel
Exposed Trim    Stainless steel renforced with plated steel insert
Backset    Furnished standard with 2-3/8" (60mm) or 2-3/4" (70mm)
Faceplate    1" x 2-1/4" (25.5mm x 57mm)
Strike    1-3/16" x 2-1/4" (30mm x 57mm)
Screws    Furnished with wood/machine screws for use on wood or metal doors or frame
Finish    US3, US4, US10, US10B, US26, US26D, US32, US32D



  • UL listed
  • Conform to UL 10C standard, Label A (3-hour rating)
